RVA/B密封旋轉卸料器

RVA/B密封旋轉卸料器

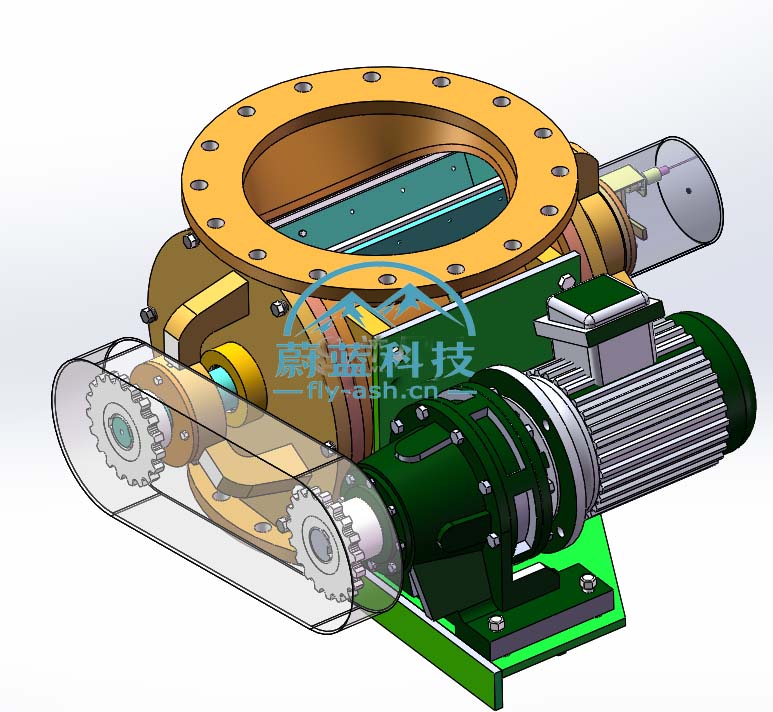

RVA/B  Seal Rotary Discharger

【概述Introduction】

     旋轉卸料器又稱電動鎖氣器、電動給料機、電動卸料器、電動關風門，既可均勻下料又有鎖氣功能，本機密封效果好，該機壓差最大0.12Mpa,不僅是一種理想的卸料裝置，也是風送系統(tǒng)不可缺的少核心設備。廣泛應用于水泥廠，電廠，化工，建材、鋼廠等行業(yè)。

   Rotary discharger is also called the electric lock machine, electric feeder，Have a lock on gas as well as uniform dischargeFunction, the machine sealing effect is good, the machine differential pressure 0.12 Mpa, the biggest，Not only is a kind of ideal discharging device, is also less air conveying system is the core equipment..Widely used in cement plant, power plant, chemical industry, building materials and other industries.

.

•

• 【特點介紹Characteristics】

• • 多標準圓形法蘭接口及多形式結構轉子

•

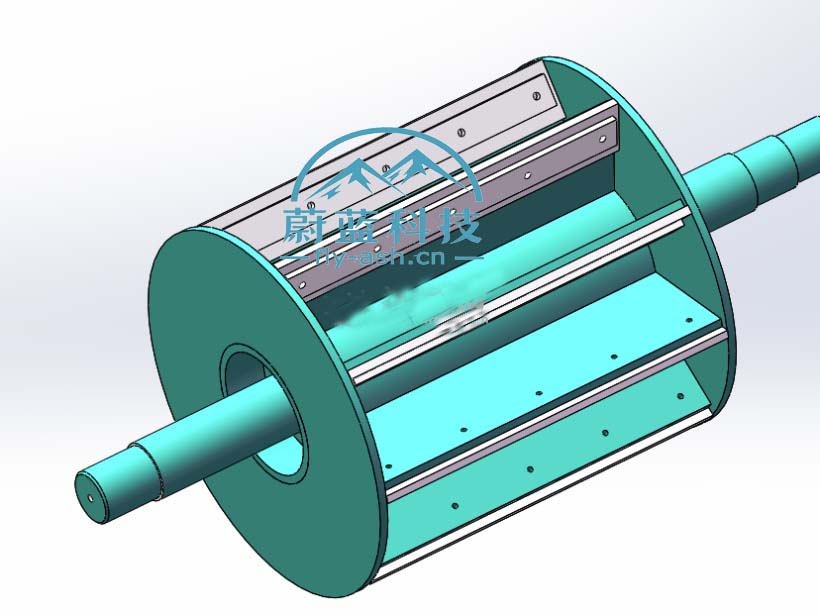

  • Flange is available to modify according to user’s requirement ;different types of rotor can be designed to match the body.

•
  • 剪切形進料口，防卡結構，高填充率。

•

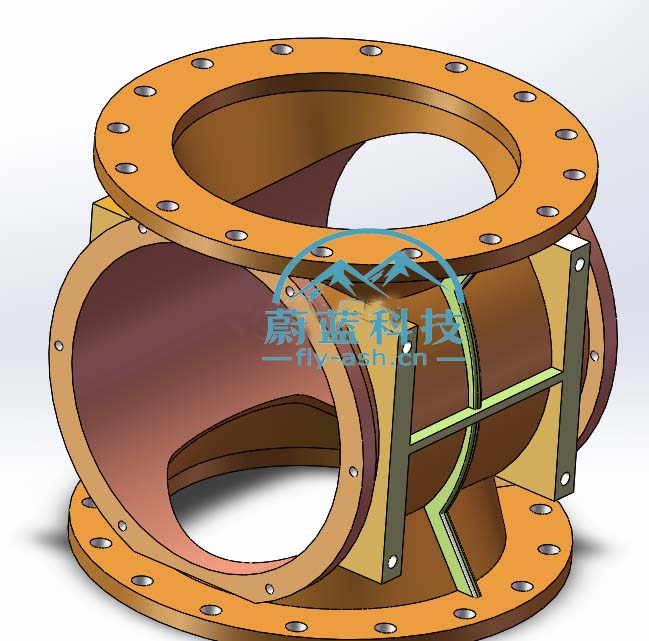

  • Eagle mouth inlet design to avoid jam and biting to keep high working efficiency.

•
  • 材質：不銹鋼或碳鋼，堅固耐用

•
  • Material can be carbon steel and stainless steel to keep soild durability.

•
  • 最小化的轉子間隙將泄漏量降至最低。

•
  • Minimum gap between the blade and body to keep air-lock efficiently.

•
  • 通過不同標準組件和設計的不同組合，可構成多形式的配置以供選擇

•
  • The driving method can be adjusted according to user’s  requiremen

• 【規(guī)格與性能參數(shù)表Specification】

注：C法蘭內徑，A法蘭外徑，B法蘭孔同圓內徑.
